图帕斯360R新款英文参数介绍

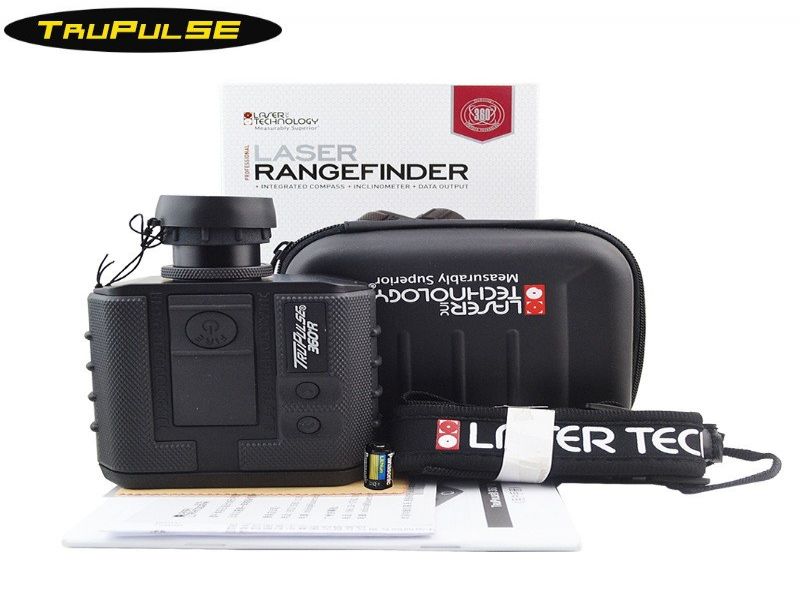

The newly released TruPulse 360R offers all the same functionality and specifications as the 360 model, but with a rugged waterproof horizontal design for the harsher environments.
Key Enhancements of the TruPulse 360R include:
33％ more range accuracy
25％ better target acquisition
Increased Azimuth Accuracy
Bluetooth? communication included
Key Features of the TruPulse 360R include:
Provides full measurement capability with AZ + INC + SD
Calculates Horizontal Distance (HD) + Vertical Distance (VD) + Height (HT) + 3D Missing Line (ML)
Solves 3D missing line calculations between any two remote points
Distinguishes desired target from surrounding obstructions with Closest + Farthest + Continuous + Filter modes
Mounts to tripods and has quality optics that enhance your field of view
Integrates with GPS for efficient GIS data capture
Key Features of LTI TruVector 360° Compass Technology:
Produces accurate and repeatable Azimuth (AZ) results regardless of the tilt or pitch you use to aim the laser
Recognizes conditions that will affect the reliability of the compass accuracy and prompts you to recalibrate
Calibrates easily with a simple field routine that can be completed in less than a minute
Key Features In All TruPulse Laser Rangefinders:
Measures Slope Distance (SD) + Inclination (INC) in Degrees or Percent
Calculates Horizontal Distance (HD) + Vertical Distance (VD) + Height (HT) + 2D Missing Line (ML)
Distinguishes desired target from surrounding obstructions with Closest + Farthest + Continuous + Filter modes
Mounts to tripods and has quality optics that enhance your field of view
图帕斯
测距仪360R中文参数规格说明：
尺寸：13x5x11cm
重量：（385克）
数据通信： 串行，通过有线RS232（标准）,蓝牙通讯
电源： 额定3.0V直流电；
电池类型： （1）CR123A
电池使用时间：少可连续使用8小时
视力安全：FDA一级(Class1)（CFR 21）
环境: 防撞、防水和防尘 (NEMA 3, IP 56)
温度：4° F到+140° F (-20° C到+60° C)
光学：7倍放大率（视野：100米@915米）
显示器：观测器内置LCD液晶显示
单位：英尺、码、米和度
脚架：标准相机脚架安装孔 1?4 ~20母螺纹
测量范围：
距离：0到3,280英尺（1,000米）典型距离,反射性目标为大6,560英尺（2,000米）
倾角：±90 度
方位角: 0至359.9度
距离：高质量目标为±1英尺（±30厘米） 低质量目标为±1码（±1米）
倾角：±0.25 度
方位角: ±1 度
测量模式:
水平距离、垂直距离、斜距和倾斜角(或***比斜率)
灵活的三点高差测量程序（可自动排列高低角）
以及两点确定空间接线程序
目标模式： 标准、近距、远距、连续和过滤（要求使用反射器和树叶
过滤器）模式。
注明: 所有规格均可能变更,恕不事先通知,请参阅LTI网站中的当前规格。
