品诚牌
阳光板|PC阳光板|

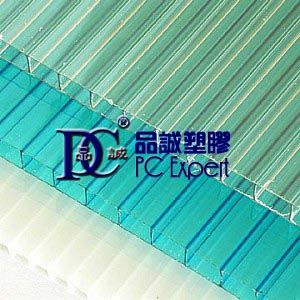

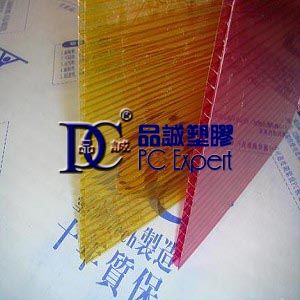

中空阳光板品诚公司生产的PC阳光板规格:
阳光板厚度：6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm,25mm阳光板
阳光板长度：标准6m.也可根据客户要求订做加长尺寸。
阳光板宽度：标准尺寸2100mm，*大尺寸2160mm
阳光板颜色：透明阳光板、湖蓝（兰）阳光板、绿色阳光板、茶色阳光板、乳白色阳光板等
PC阳光板适用范围：
工业、民用及公共建筑的采光屋顶，室内装饰及公用设施；
体育场馆及娱乐设施；
农用温室及养殖大棚；
广告
灯箱、标志牌及售点广告等；
现代城市火车站、汽车站及航空港等候厅顶棚。、
PC阳光板性能：
透 光：透光率高达88%
比 重：比重为1.2g/cm3
抗冲击：冲击强度达到850J/m
热膨胀系数：0.065mm/moC
抗拉强度：≥60N/mm2 弯曲强度：100N/mm2
断裂拉伸应力：≥65MPa
断裂拉伸率：>100%
热变形温度：140oC
隔音效果：10mm阳光板 衰减20dB
Cheng PC products produced by the sun board:
Sunshine thickness: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm sun panel
Sun board length: standard 6m. Can also be customized according to customer extended size.
Sunshine Width: standard size 2100mm, the maximum size of 2160mm
Sun board color: transparent sun panels, sky blue (blue) light panels, green light panels, light brown boards, white boards and other sun
PC sun panel application:
Industrial, commercial and public buildings, lighting the roof, interior and public facilities;
Sports venues and entertainment facilities;
Agricultural greenhouse and breeding shed;
Advertising light boxes, signs and point of sale advertising;
Modern city railway station, bus station and the airport waiting room ceiling. ,
PC sunlight board performance:
Through light: light transmission rate of up to 88%
Specific gravity: gravity is 1.2g/cm3
Impact: Impact strength of 850J / m
Thermal expansion coefficient: 0.065mm/moC
Tensile strength: ≥ 60N/mm2 bending strength: 100N/mm2
Tensile stress: ≥ 65MPa
Elongation:> 100%
Heat deflection temperature: 140oC
Sound insulation: 10mm 20dB attenuation of the sun panel
