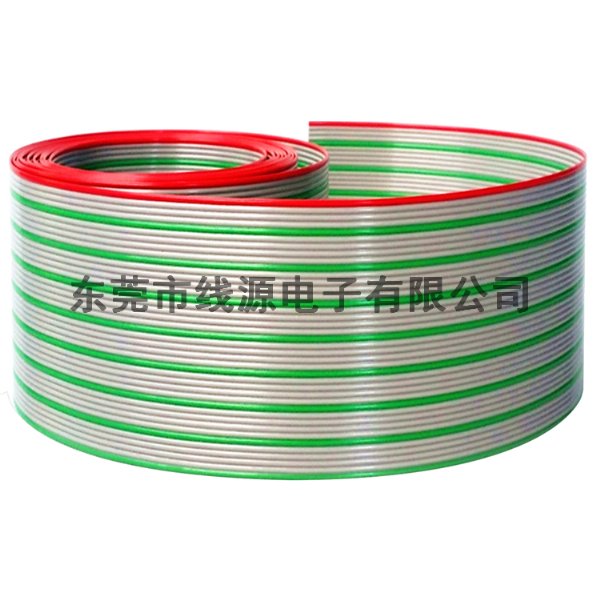

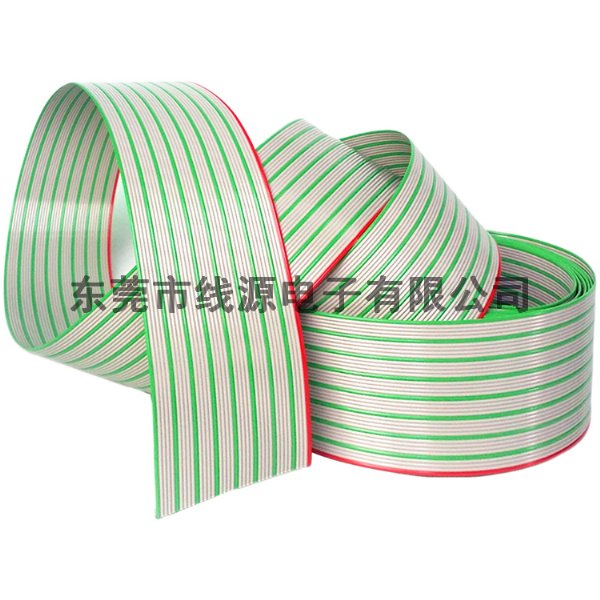

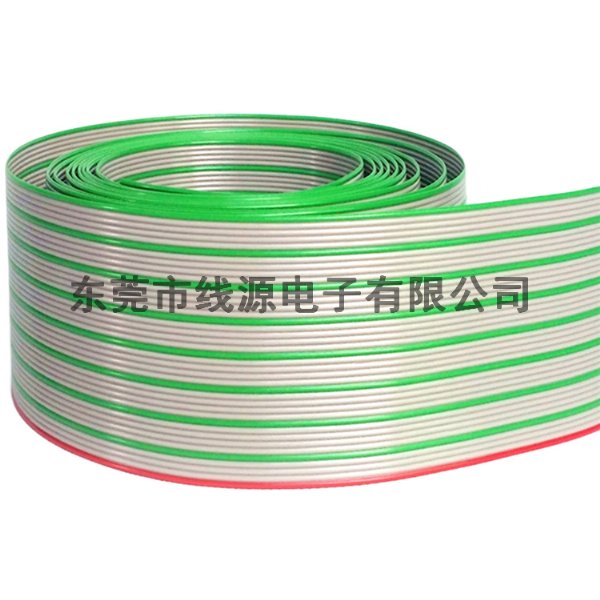

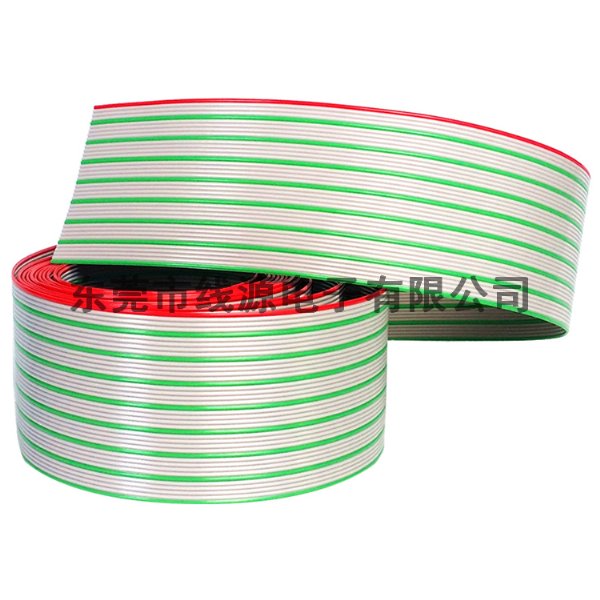

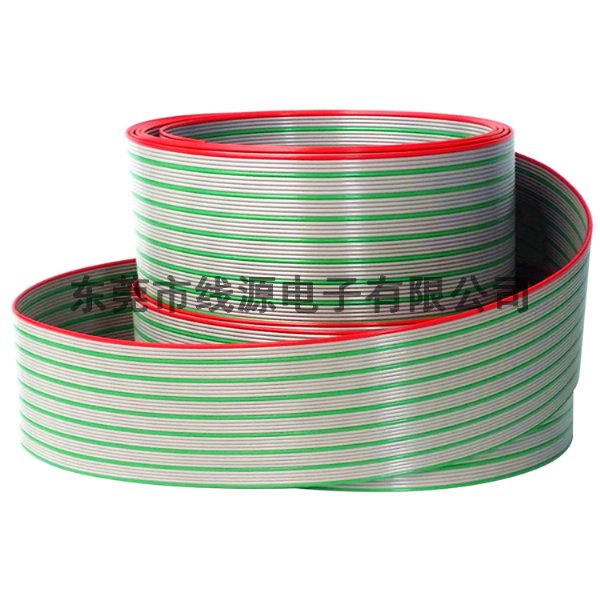

UL20080软排线 28AWG,26AWG,UL20080排线
■产品说明：
●额定温度：60℃，80℃，90℃，105℃
●额定电压：30V
●参考标准：UL758,UL1581,CSA C22.2No.210.2
●导体使用单支或绞合40AWG以上镀锡或裸铜
●PVC绝缘，符合ROHS环保标准
●通过UL VW-1、CSA FT1及JQA F-Mark阻燃测试
●使用标准绝缘厚度、易裁线、易剥皮
●用于一般电子、电器设备内部连接线
■ PRODUCT DEscriptION
●Rated temperature：60℃，80℃，90℃，105℃
●Rated voltage：30V
●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor 40AWG min.
●PVC insulation , comply with ROHS environmental standard
●Passes UL VW-1,CSA FT1 and JQA F-Mark flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
■印字 MARKING
*间距：两根相邻导体中心之间的距离
*Pitch: the distance between conductor and the nearest conductor
