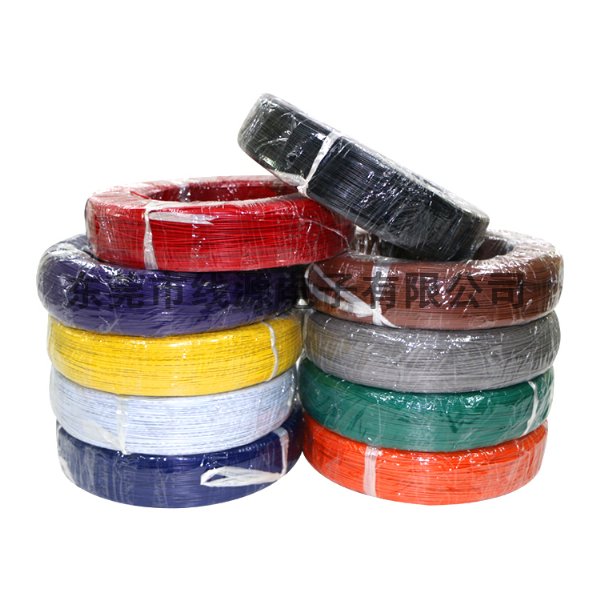

UL1571
电子线 36AWG,34AWG,32AWG,30AWG,28AWG,26AWG,24AWG,22AWG,20AWG,18AWG,16AWG
■产品说明：
●额定温度：80℃
●额定电压：30V
●参考标准：UL758,UL1581
●导体使用单支或绞合50AWG以上镀锡或裸铜
●PVC或SRPVC绝缘，符合ROHS环保标准
●PVC护套，符合ROHS环保标准(可选)
●镀锡或裸铜缠绕屏蔽(可选)
●通过UL VW-1及JQA F-Mark阻燃测试
●使用标准绝缘厚度、易裁线、易剥皮
●用于一般电子、电器设备内部连接线
■ PRODUCT DESCRIPTION
●Rated temperature：80℃
●Rated voltage：30V
●Reference standard：UL758,UL1581
●Solid or stranded ,tinned or bare copper conductor 50AWG min.
●PVC SR-PVC insulation, comply with ROHS environmental standard
●PVC jacket , passes ROHS environmental standard（optional）
●Tinned or bare copper wire spiral shield（optional）
●Passes UL VW-1 and JQA F-Mark flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
■产品结构 CABLE CONSTRUCTION
备注.OS-1*：先镀后绞再镀
铜线.
Note. OS-1*:Over-coated tinned stranded copper
