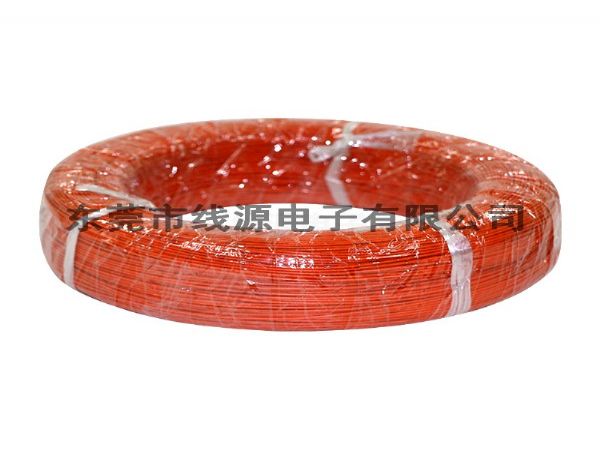

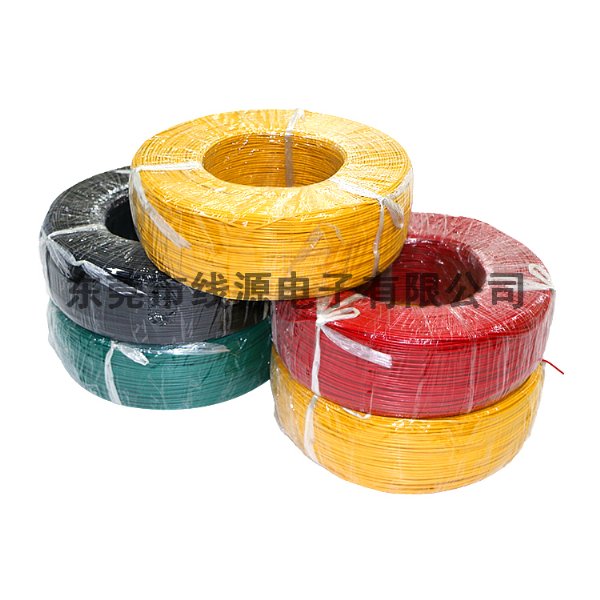

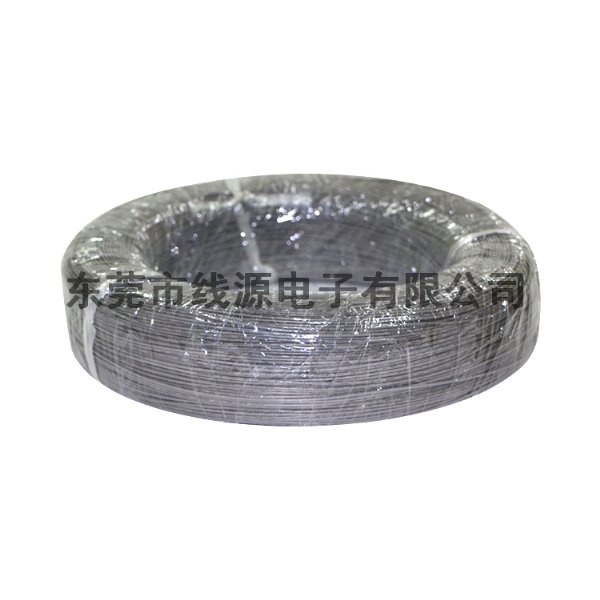

UL1015
电子线 30AWG,28AWG,26AWG,24AWG,22AWG,20AWG,18AWG,16AWG,14AEG,12AWG,10AWG电子线规格
■产品说明：
●额定温度：105℃
●额定电压：600V
●参考标准：UL758,UL1581,CSA C22.2No.210.2
●导体使用单支或绞合30~10AWG镀锡或裸铜
●PVC绝缘，符合ROHS环保标准
●通过UL VW-1、CSA FT1及JQA F-Mark阻燃测试
●绝缘厚度均匀、易裁线、易剥皮
●用于一般电子、电器设备内部连接线
■ PRODUCT DESCRIPTION
●Rated temperature：105℃
●Rated voltage：600V
●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor 30~10AWG
●PVC insulation ,comply with ROHS environmental standard
●Passes UL VW-1,CSA FT1 and JQA F-Mark flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
备注.OS-1*：先镀后绞再镀
铜线.
Note. OS-1*:Over-coated tinned stranded copper
