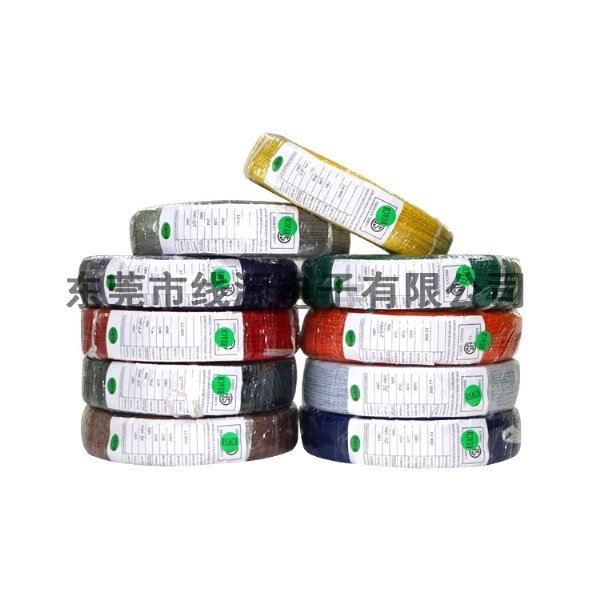

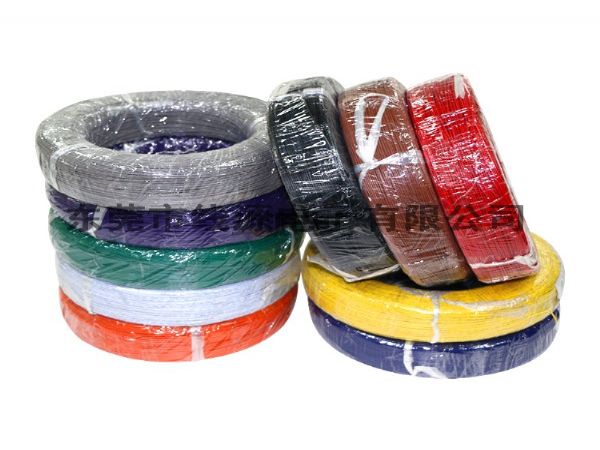

UL1007
电子线 30AWG,28AWG,26AWG,24AWG,22AWG,20AWG,18AWG,16AWG电子线规格
■产品说明：
●额定温度：80℃
●额定电压：300V
●参考标准：UL758,UL1581,CSA C22.2No.210.2
●导体使用单支或绞合32~16AWG镀锡或裸铜
●PVC绝缘，符合ROHS环保标准
●通过UL VW-1、CSA FT1及JQA F-Mark阻燃测试
●绝缘厚度均匀、易裁线、易剥皮
●用于一般电子、电器设备内部连接线
■ PRODUCT DESCRIPTION
●Rated temperature：80℃
●Rated voltage：300V
●Reference standard：UL758,UL1581,CSA C22.2No.210.2
●Solid or stranded ,tinned or bare copper conductor 32~16AWG
●PVC insulation ,comply with ROHS environmental standard
●Passes UL VW-1,CSA FT1 and JQA F-Mark flame test
●Uniform insulation thickness to ensure easy stripping and cutting
●For general purpose internal wiring of appliance
备注.OS-1*： 先镀后绞再镀
铜线.
Note. OS-1*:Over-coated tinned stranded copper
