鸿成达厂家定制防静电
周转车 PCB
线路板插板周转车 PCB槽板车
用途及特性
Uses and characteristics
1.有效消除PCB板在生产周转中产生的静电危害.
2.随意调节槽板之间的间距，用于存放不同规格的PCB板.
3.方便运输及存储.
1. Effectively eliminate the static electricity harm that PCB board in production turnover.
2. Arbitrarily adjust the spacing between the slot board for storing different
spec of PCB boards.
3. Convenient transportation and storage.
规格specification

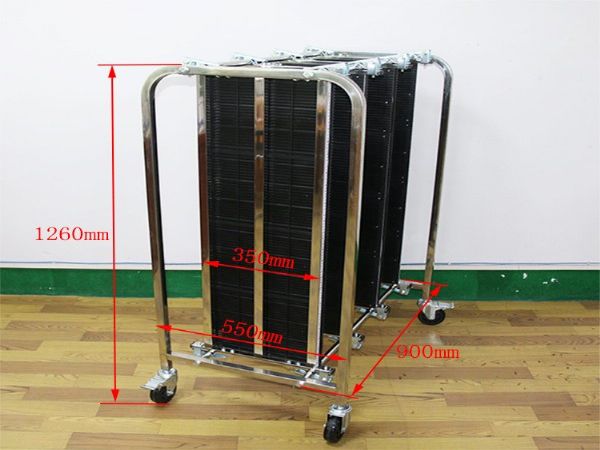

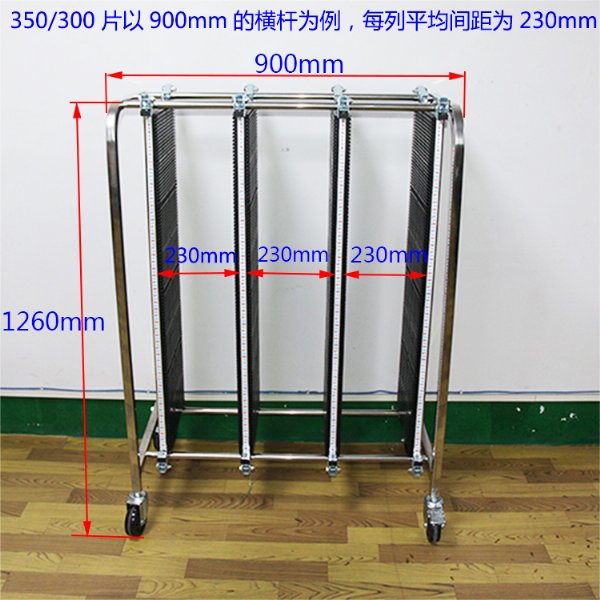

900*550*1260 3列
静电板槽长：350mm 槽宽5mm 槽深5mm
900*550*1260 3 columns
Electrostatic plate slot length: 350mm slot width 5mm slot depth 5mm
材质明细
Material Details
1.框架：
不锈钢，
2.槽板：PP，
3.调节扣：金属镀铬，

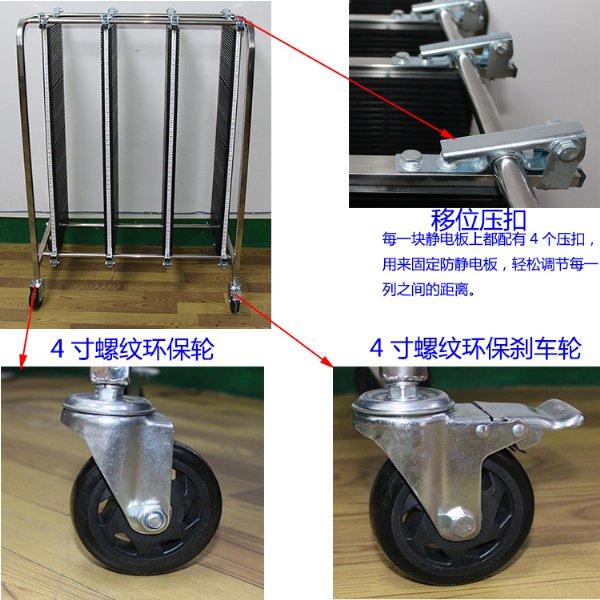

4.轮子：导电橡胶轮.
1.Frame:Stainless steel,
2.Slot board:PP,
3.Adjustment buckle:Metal chrome plating,
4.Wheels:Conductive rubber wheels.

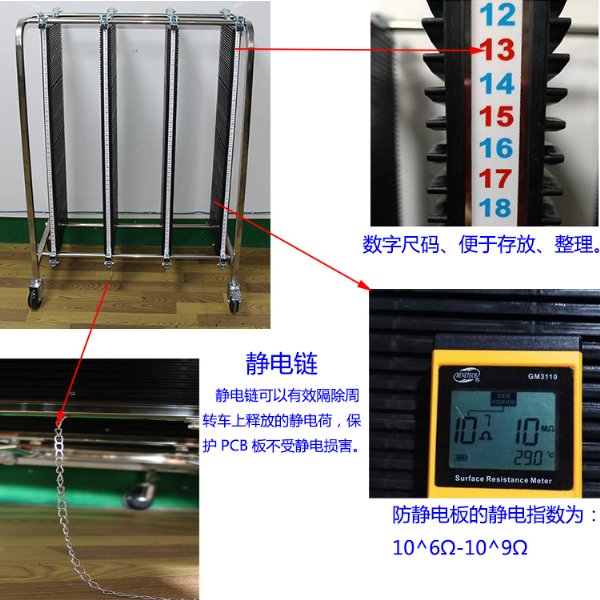

表面电阻：10^6-10^9Ω
测试环境：25±2℃
RH:55％±5％
Surface resistance: 10^6-10^9Ω
Test environment: 25±2℃
RH: 55％ ± 5％
