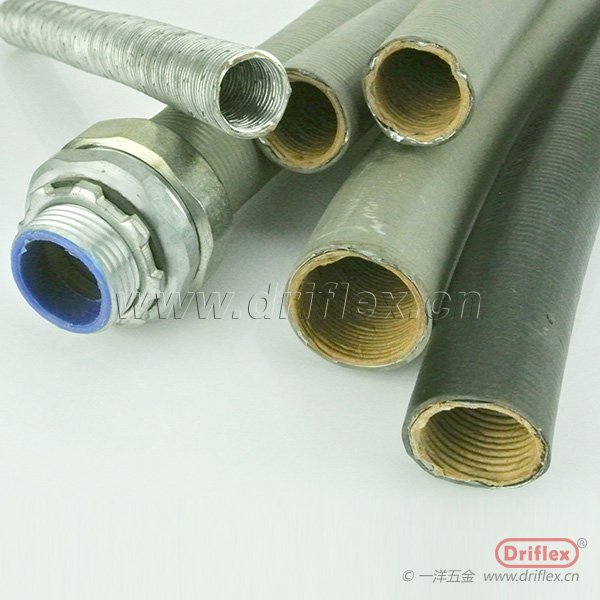

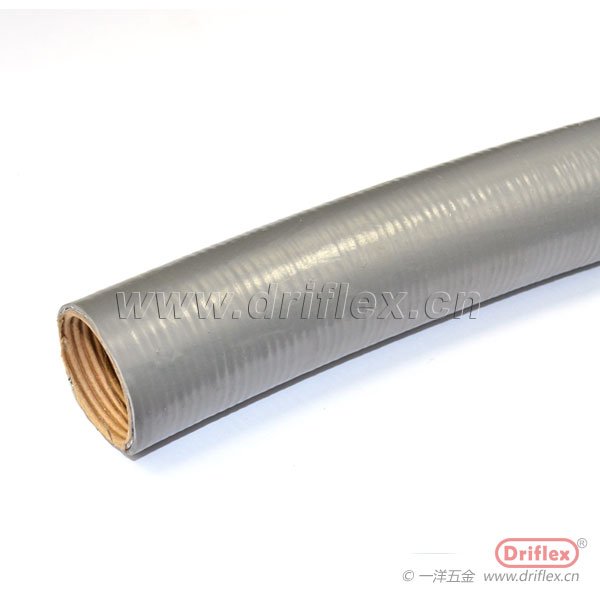

LV-5Z防水阻燃型普利卡
软管
LV-5 Liquid Tight Plica Tube
材 质: 里层耐水电工纸+中间层
钢带+PVC.
Materials: Electrical paper + steel strip + PVC coated
防护等级: IP67
Protection Rating: IP67
耐温范围: -40℃ - +105℃
Temperature Range: -40℃ - +105℃
型号  内径(mm) 外径(mm) 外径公差(mm) PVC 厚度 包装(m/coil)
钢管内径对应型号
电线管对应型号
PVC Thickness Steel pipe I.D. Size Conduit Size
Part No. I.D. O.D. O.D. Tolerance mm Packing mm inch mm inch
LV-5Z-12# 11.4 17.7 ±0.2 0.6 50 8.0 1/4 13.0 1/2
LV-5Z-15# 14.1 20.6 ±0.2 0.6 50 10.0 3/8 16.0 5/8
LV-5Z-17# 16.6 23.1 ±0.2 0.6 50 15.0 1/2 19.0 3/4
LV-5Z-24# 23.8 30.4 ±0.2 0.6 25 20.0 3/4 25.0 1
LV-5Z-30# 29.3 36.5 ±0.2 0.6 25 25.0 1 32.0 1-1/4
LV-5Z-38# 37.1 44.9 ±0.4 0.6 25 32.0 1-1/4 38.0 1-1/2
LV-5Z-50# 49.1 56.9 ±0.4 0.8 25 40.0 1-1/2 51.0 2
LV-5Z-63# 62.6 71.5 ±0.6 0.8 10 50.0 2 64.0 2-1/2
LV-5Z-76# 76.0 85.3 ±0.6 0.8 10 70.0 2-1/2 76.0 3
LV-5Z-83# 81.0 90.9 ±0.8 1.0 10 80.0 3
LV-5Z-101# 100.2 110.1 ±0.8 1.0 5 100.0 4
LV-5Z-130# 126.4 136.0 ±1.0 1.5 3 125.0 5
长度说明:
LV-5Z-12#、15#、17#每卷允许有两个
接头(三根),长度*短不少于8M;
LV-5Z-24#、30#、38#、50#每卷允许有一个接头(二根),长度*短不少于5M。
Length per Coil:
LV-5Z-12#、15#、17# allows two joints per coil(3pieces), the shortest should be 8M;
LV-5Z-24#、30#、38#、50# allows one joints per coil(2 pieces),the shortest should be 5M。
