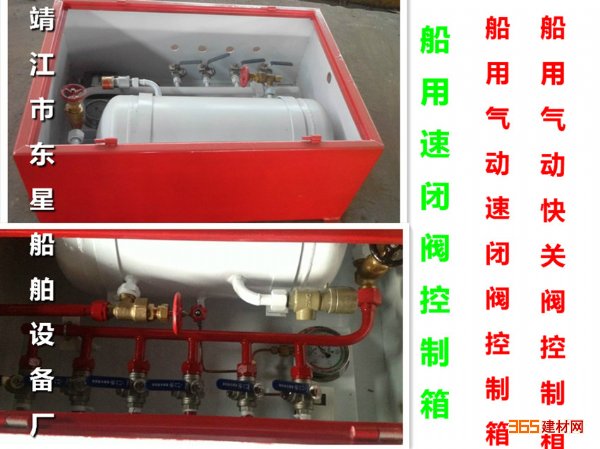

船用气动速闭阀控制箱

  • 价格:电询
  • 产地:江苏靖江
  • 品牌:东星
  • 型号:SDC541,CSKX
  • 规格:气瓶容量:30L-200L,2-20W
  • 联系:韩部长 0523-84231788 13951926047
              联系我时请告知是在建材采购网看到的
  • 公司:靖江市东星船舶设备厂
  • 产品介绍





    是船舶各燃料舱,滑油舱或日用燃油柜,实现气动遥控操作关闭阀门切断油路,在火灾紧急情况下,有效地防止火灾蔓延,避免重大损失。


    安装形式:

    挂壁式安装,半嵌入式安装,嵌入式安装*:嵌入式安装,因为此种按照方式方便,外形美观。




    选型标记如下:




    型号:CRD-U3-70L

     型号:CRD-U5-100L

    等等



     技术规格:




    型   号Type: CSKX-70Ⅴ

    数   量Quantity: 1台/船 1set/ship

    空气瓶容积 Volume of Air Receiver: 70L

    工作压力working pressure: 0.7MPa

    设计压力design pressure:  0.8 Mpa

    控制路数control ways :5 路 ways

    材   质:  空气瓶材料为Q345R,箱子材料为Q235A,管路为20无缝管

    Material: material of air reservoir is Q345R material of box is Q235A, and material of tube is 20 seamless tubes.

    油   漆::空气瓶外表面涂乳白色面漆,管子及箱体外表涂红色面漆

    Paint: Inside surface of air receiver to be painted with white paint, all tube and outside surface of box to be painted red paint.

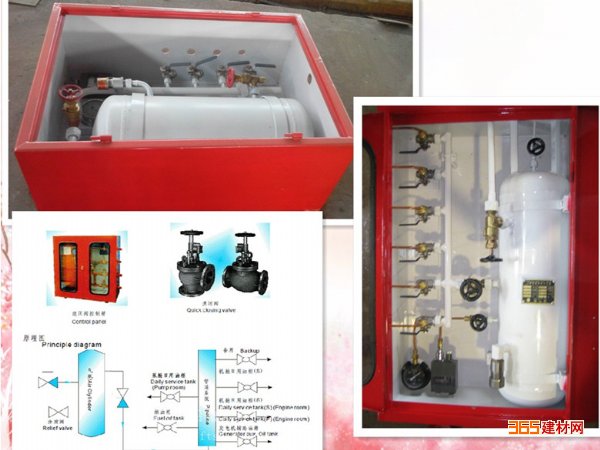

    控制箱配备空气瓶,进气阀、出气阀、压力表及压力表阀、安全阀、泄放阀、各阀门的口径及位置在认可图时确定。

    Control box should be equipped with following nozzles and valves: air receiver, inlet valve, outlet valves, pressure gage and its valves, safety valve, drain valve and so on. The final arrangement and diameters will be determined in the drawings approved by Part A.
