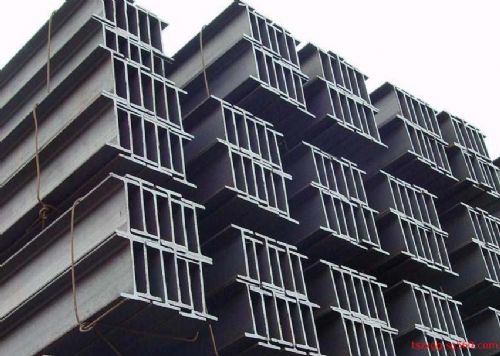

品名：热轧H
型钢 Name: ：Hot rolLED H beam
执行标准： JIS G3192-2006 / GB T11263—2010 Standard : JIS G3192-2006 / GB T11263—2010
材质：JIS G3101 SS400 Steel grade: JIS G3101 SS400
H×B Tw Tf JIS Weight (kg/m) GB Weight (kg/m)
100×100 6 8 16.9 17.2
125×125 6.5 9 23.6 23.8
148×100 6 9 20.7 21.4
150×75 5 7 14.0 14.3
150×150 7 10 31.1 31.9
175×90 5 8 18.0 18.2
194×150 6 9 29.9 31.2
198×99 4.5 7 17.8 18.5
200×100 5.5 8 20.9 21.7
248×124 5 8 25.1 25.8
250×125 6 9 29.0 29.7
298×149 5.5 8 32 32.6
300×150 6.5 9 36.7 37.3
品名: 热轧
工字钢 Name: Hot rolLED I- beam
执行标准: GB/T706-1988 tandard: GB/T706-1988
材质: Q235B Steel grade: Q235B
Designation H B D Weight (kg/m)
10 100 68 4.5 11.261
12 120 74 5 13.987
14 140 80 5.5 16.89
16 160 88 6 20.513
18 180 94 6.5 24.143
20a 200 100 7 27.927
22a 220 110 7.5 33.07
25a 250 116 8 38.105
品名 : 热轧欧标工字钢 Name: Hot rolLED European I-beam
执行标准 : Euronorm 1957 Dimensions standard : Euronorm 1957
尺寸标准: EN 10034:1993 Tolerance: EN 10034:1993
材质: S235JR Steel grade: S235JR
IPE
Designation H×B Tw Tf Weight (kg/m)
IPE 100 100x55 4.1 5.7 8.1
IPE 120 120x64 4.4 6.3 10.4
IPE 140 140x73 4.7 6.9 12.9
IPE AA
Designation H×B Tw Tf Weight (kg/m)
IPE 100 AA 97.6x55 3.6 4.5 6.72
IPE 120 AA 117x64 3.6 4.8 8.36
IPE 140 AA 136.6x73 3.8 5.2 10.05
IPE 200 AA 196.4x100 4.5 6.7 17.95
IPE AAAA
Designation H×B Tw Tf Weight (kg/m)
IPE 120 AAAA 113.8x64 2.9 3.3 5.8
IPE 140 AAAA 134x73 3.2 4.2 8.28
