GOLD SNAKE®是一款*高品质的
软管。具有无与伦比的特点，卓越的性能，寿命长，耐老化，*大程度发挥软管的使用性。GOLD SNAKE® 适用于建筑业，园艺或者机械设备，仪器及诸多应用。非常柔软，耐碾压。
工作压力：至30巴
爆破压力：至90巴
温度范围：-30℃~+100℃，可用于+130℃
内衬 ：黑色光滑EPDM
外胶 ：黑色布纹CR
加强层：合成纤维

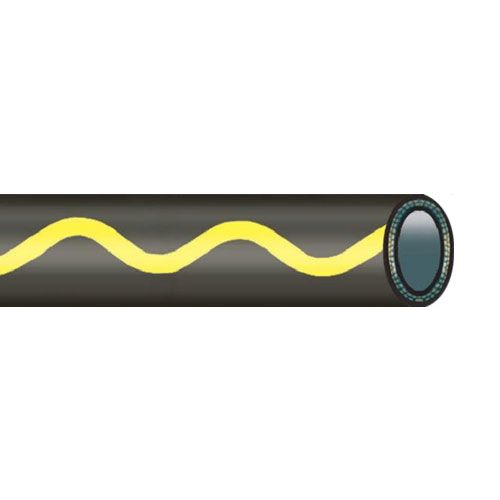

软管外侧标识：黄色波浪条纹轴向标记于黑色表面
Marking:yellow wavy line on black cover, axially applied
The high-grade water- and cleaning hose is a trademarked article of highest quality. A tool with unsurpassed characteristics, robust, nearly indestructible,long lasting and of utmost use. GOLD SNAKE® is the right hose for ambitious applications. A product that meets all requirements for the building industry,for landscape gardening or for machines, apparatus, containers and many other applications.
Black, non-porous, smooth, EPDM lining
Reinforcements: synthetic fibres
Black, fabric patterned CR-cover, resistant to ozone, weather, UV, oil,grease, chemicals and abrasion
Working pressure up to 30 bar / 435 psi (depending on bore size)
Temperature range from – 30°C up to +100°C / -22°F up to +212°F Can be steamed up to 130°C / +266°F (max. 30 minutes)
Non-buckling, shock-proof, can be overrun
内径毫米 壁厚毫米 外径毫米 公称压力 巴/20°C 重量 千克/米 长度 米 产品编号
10 3.5 17 30 0.160 50 0112 111901
13 4 21 30 0.225 50 0112 111902
16 3.5 23 25 0.260 50 0112 111903
19 4.5 28 25 0.385 50 0112 111904
22 4.5 31 20 0.430 50 0112 111905
25 4.5 34 20 0.490 50 0112 111906
32 5.5 43 12 0.760 50 0112 111907
38 6.5 51 12 1.050 50 0112 111908
45 7.5 60 10 1.480 50 0112 111909
50 7.5 65 10 1.580 50 0112 111910
