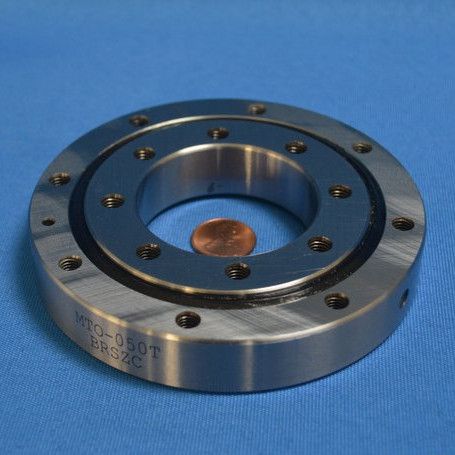

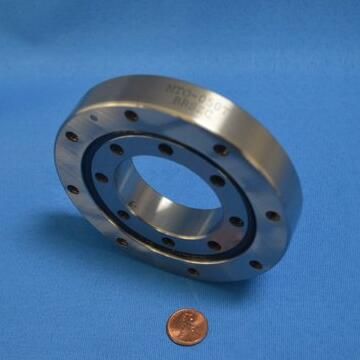

MTO-050T英制
回转支承内径50mm
d: 1.968inch
D: 4.331inch
H: 0.787inch
Mass: 2lbs
Model d D H Hi/Ho G APPROX.
(in) (in) (in) (in) (lbs)
MTO-050 1.968 4.331 0.787 0.728 2
MTO-050T 1.968 4.331 0.787 0.728 2
MTO-065 2.559 5.315 0.866 0.787 4
MTO-065T 2.559 5.315 0.866 0.787 4
MTO-122 4.803 8.898 1.339 1.142 13
MTO-122T 4.803 8.898 1.339 1.142 13
MTO-143 5.630 9.803 1.339 1.142 15
MTO-143T 5.630 9.803 1.339 1.142 15
MTO-145 5.709 11.811 1.968 1.732 37
MTO-145T 5.709 11.811 1.968 1.732 37
MTO-145X 5.709 12.286 1.968 1.732 41
MTO-170 6.693 12.205 1.811 1.614 33
MTO-170T 6.693 12.205 1.811 1.614 33
MTO-210 8.268 14.370 1.575 1.496 38
MTO-210T 8.268 14.370 1.575 1.496 38
MTO-210X 8.268 14.686 1.968 1.732 48
MTO-265 10.433 16.535 1.968 1.732 54
MTO-265T 10.433 16.535 1.968 1.732 54
MTO-265X 10.433 17.086 1.968 1.732 61
