产品介绍
主要特性与技术指标
分辨率高达6?位数
阅读率高达50000的读数/秒
存储多达2000000个读数
电压范围从100 mV至1000 V
从1到10μ电流范围
USB和LAN接口，可选的GPIB
BenchVue软件启用
描述

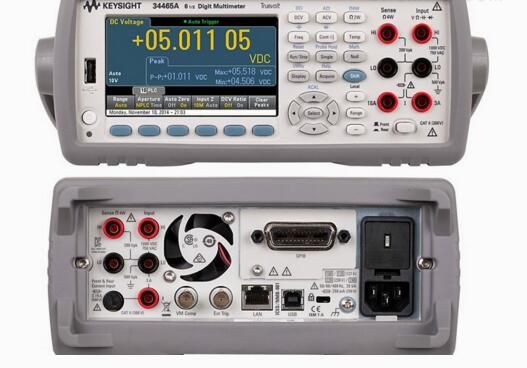

Keysight 34465a 6?数字，性能truevolt DMMs提供更高水平的精度，速度和分辨率。
很快获得更多的洞察：truevolt DMM的图形功能，如趋势和直方图图提供更多的见解很快。这两个模型还提供了一个数据更容易的趋势分析和
数字化方式捕捉瞬变记录模式。
测量设备的低功耗：测量非常低的电流的能力，1μ一系列PA分辨率，使您可以在非常低的功率器件的测量。
维护校准的测量：自动校准可以补偿温度漂移，你可以在你的工作保持测量精度。
主要特性与技术指标
Resolutions up to 6? digits
Reading rates up to 50,000 readings/s
Memory up to 2 million readings
Voltage ranges from 100 mV to 1,000 V
Current ranges from 1 μA to 10 A
USB and LAN interfaces, optional GPIB
BenchVue software enabLED
描述
The Keysight 34465A 6? digit, Performance Truevolt DMMs offer higher levels of accuracy, speed and resolution.
Get more insight quickly: Truevolt DMMs graphical capabilities such as trend and histogram charts offer more insights
quickly. Both models also provide a data logging mode for easier trend analysis and a digitizing mode for capturing
transients.
Measure low-power devices: The ability to measure very low current, 1 μA range with pA resolution, allows you to make
measurements on very low power devices.
Maintain calibrated measurements: Auto calibration allows you to compensate for temperature drift so you can maintain
measurement accuracy throughout your workday.
