电机驱动，使砖坯实现90度调头。装机功率1.1KW
90Turning Unit
This is two motor driven device provided by gear motor,which can turn thiles by 90
InstalLED Power:1.1kw
洗边机
采用145/195胶轮，用于砖坯在釉线施釉后周边清洗适用于100X100－600X600mm，转速70rpm
Edge Cleaner
With rubbe wheel.it`s used ror cleaning the edge of tiles after being glzaed.The unit is suita ble for various sizes between 100X100 and 600X600mm Rotate speed is 70rpm
旋转辊台
同步带进出砖辊台
The isochronous belt load-in and loading-out machine
用于输送砖坯的辊棒配有摩擦套，通过同步带的摩擦传动、带动辊棒旋转。同步带辊台的辊棒中心距灵活可调，结构简单，安装制作方便，外观整洁美观。
多功能旋转辊台
Multi-function Rotating Table
本机可寮现砖坯原地调头、直角转弯或直接输送，对于计划生产大规格长条砖或正方砖，是一台理想设备。
调头辊台
托后自动升降，将辊棒输送的砖还，旋转90度，实现调头后送出该设备。

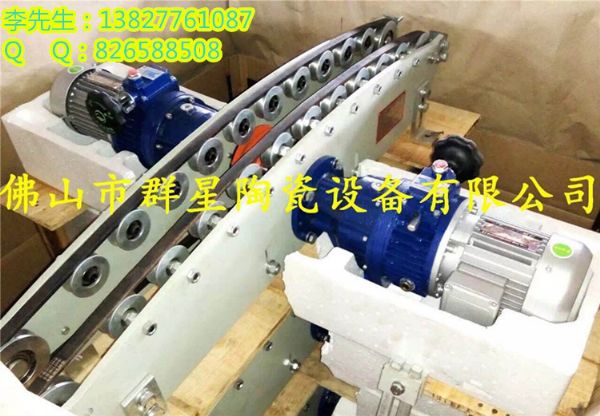

90o锥棒转弯机
90oCurethane Machine With Tapered Rollers
锥棒长度
Length or Reller 转弯半径
Diameter 装机功率
LnstalLED Power
650 1140mm 0.55KW
850 1220mm 0.55KW
1050 1500mm 0.75KW
转弯机构
