适应与额定工作压力(1.6MPa)和工作温度（200°c）范围内，输送液体-如水、油，气（天然气、煤气、水蒸气）等一般管路的连接。
表面处理：涂漆、喷涂、热镀锌、电镀锌。
执行标准
企业标准 Q/JZ01-2015(修改采用日本标准JIS B2301)
国家标准 GB/T3287-2011
国际标准 ISO5922/ISO49/ISO07-1/ISO228
欧盟标准 EN1562：1977/EN10242：2003
德国标准 DIN2950/1692/2999
美国标准 ANSI/ASTM A 197/A 197M-2000
ANSI/ASME16.3-92/B1.20.1-83
材料机械性能
抗拉强度≥330MPa；伸长率≥8％;硬度≤HB150
主要工程项目 北京鸟巢 北京水立方 北京国家大剧院 上海世博会中国馆 广州小蛮腰等
Malleable iron pipe fittings
Suitble for pressure max1.6Mpa,temperature Max 200℃
Application: pipeline transportation for water, oil, gas,etc
Finishing: (Black) Painting,Galvinizing, Elctro-plating

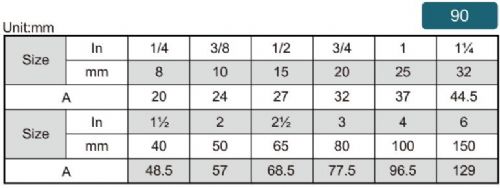

SIZE:1/4-6
TYPE:BANDED;BEADED
Standards:
Company Standard: Q/JZ 01-2015(partially based on JIS B2301)
China Standard： GB/T3287-2011
International Standards: ISO5922/ISO49/ISO7-1/ISO228
EN1562:1997/EN10242：2003
DIN2950/1692/2999
ANSI/ASTM A197 /A 197M-2000 ANSI/ASME 16.3-92/B1.20.1-83
Mechanical Properties: Tensile Strenth≥330Mpa; Elongation rate ≥8％； Hardness≤ HB150
1,Hot-Dip Galvanizing banded with BS21 thread ;
2,Packing:packed in the standard export carton
3,Carton：485mm×320mm×180mm;
4,Price：FOB TIANJIN
5,Validity：20days
6,Payment terms: 30％ T/T to be deposted on, 70％ T/T the balance by B/L copy.
7,Date of delivery: 30DAYS
Cooperate Projects: Olympic Venue of 2008 Olympic Games-Birds Nest; National Center for the Performing Arts;
Main body of Beijing Capital International Airport Terminal 3;Beijing Yintai Center;Fortune Center(CBD),
Global Trade Center,etc...
