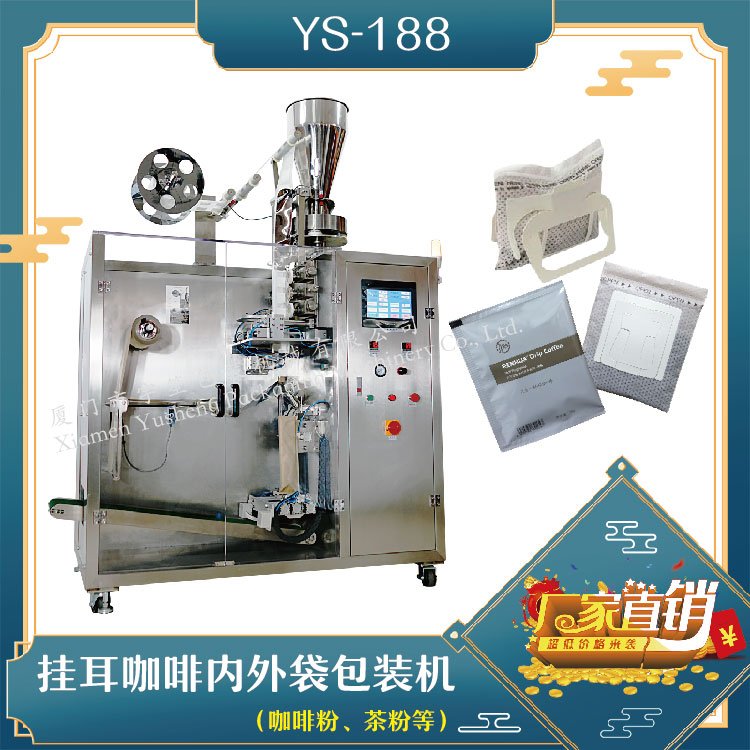

YS-188 Drip coffee bag (inner & outer) packing machine
YS-188 挂耳咖啡内外袋
包装机特 点 Characteristic
1、适用于咖啡粉、小颗粒状物料。
The machine is suitable for ground coffee and small particulate material.
2、采用特定的挂耳式滤网、三边封口、直接挂在杯子边缘，咖啡冲泡效果更好，且袋型美观,目前国外市场非常流行。
Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、本机具有自动完成制袋、计量、充填、封合、分切、计数、打印批号等功能。
The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、内袋为
无纺布挂耳袋，冲泡方便且卫生。封口采用先进的超声波封，封口效果好，袋形美观。
The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、
包装材料：
复合膜、尼龙、玉米纤维、挂耳咖啡膜。
Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
封口方式 Sealing Type
三边封口Three sides sealing
技术参数
Technical Parameters
计量范围：5 - 10 g（ 15 ~ 33 ml ）
Measuring Scope
内袋尺寸：长 ( L ) ：70 - 74 mm 宽 ( W ) ：90 mm
Inner bag size
外袋尺寸：长 ( L ) ：120 mm 宽 ( W ) ：100 mm
Outer bag size
包装速度：20-35 bags/min
Packing Speed
外型尺寸：1720 * 900 * 2270 mm
Dimension ( L * W * H )
整机重量：660 kg
Weight
总 功 率：AC220V / 50Hz / 3.7kw
Total Power
气 源：≥0.6m3/ min
Gas source
选购配备
Optional
Equipments
打码机 Coding machine
敲打
Tap
