规 格：A型
产品备注：HOPE
产品类别：阿尔门试片（弧高试片）

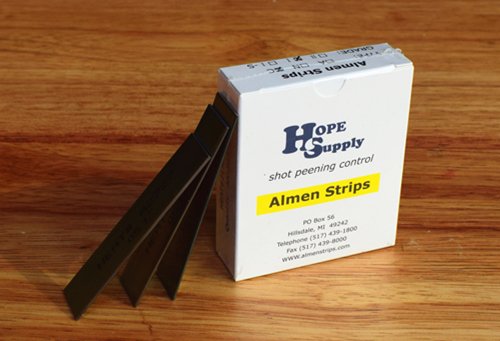

阿尔门试片是用来表征抛喷丸效果的一种标准样块。材质为SAE1070
弹簧钢，试片单面在弹丸冲击下,表面层发生塑性形变,由此导致试片向喷射面呈球面状弯曲,切入球面的特定基准面到球面的距离称为弧高度.
根据强化应用，命名了三种阿尔门试片：
A型试片
长76.1mm宽18.95mm厚1.295mm
每千片15.3千克
N型试片
长76.1mm宽18.95mm厚0.785mm
每千片9.50千克
C型试片
长76.1mm宽18.95mm厚2.385mm
每千片28.5千克
N:厚度= 0.031 (0.79 mm) A:厚度= 0.051 (1.29 mm) C试片:厚度= 0.094 (2.39 mm)
was started in 1991 to produce and sell Almen Strips, used for manufacturing process control of precision shot peening. Typical end users of Almen Strips are industrial shops which shot peen components like turbine blades, gears, springs, and others where control of shot peening is critical. For these, shot peening is done to introduce surface stress and, thereby, improve fatigue life of the component.
The Standards to which the Almen Strips conform are MIL-S-13165C, AMS-S13165, SAE J442, and Decarb per SAE J442 Para. 6.3 Surface Carbon. Certificates of conformance are supplied with each shipment of Almen Strips, at no extra charge. These Strips are produced and sold in three standard thicknesses identified as A (.051), N (.031), and C (.094)
manages production process controls and all finished inventory. The Company also supplies analog and digital Almen Strip gages as well as Almen Strip holders. Hope Supply, Inc. has enjoyed a steadily increasing market share. Generous inventory in its Hillsdale, Michigan, facility allows shipments of Almen Strips within one business day of order receipt. Consistent Quality, on-time delivery, and competitive pricing have stimulated the Companys growth.
