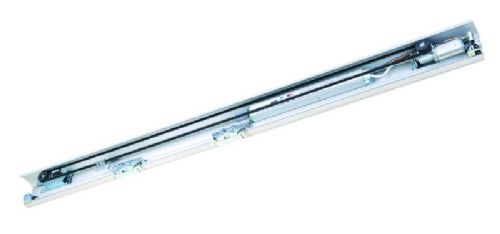

Art. No.1071.101-75
门型/door type 单页/single 双页/dual
*大门重/max weight 200 kgs 2x180kgs
适用门宽/ door width 700-2000mm 600-1800mm
电源/power AC 220V±10%, 110V±10%, 50-60Hz
开门速度/opening speed 100-750mm/s (可调/adjustable)
关门速度/closing speed 100-700mm/s (可调/adjustable)
开门保持时间/hold open time 1-30s (可调)
手动推力/manual force <25N(断电)
电机/motor 24VDC
功率/power 75W
保护等级/protection IP20
环境温度/ambient temperature -20℃- +50℃
