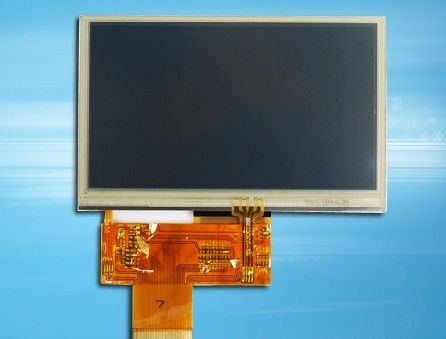

AT043TN24 V.1自带触摸
数字屏，4.3寸
液晶屏TFT彩屏，A屏，长期供应
分辨率480*272， 16：9，40pin
No. Item Specification Remark
1 LCD size 4.3 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 480 × 3 (RGB) × 272
4 Display mode Normally White, Transmissive
5 Dot pitch 0.066(W) × 0.198(H) mm
6 Active area 95.04(W) × 53.856(H) mm
7 Module size 105.5(W) × 67.2(H) × 4.05(D) mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11 Backlight Power consumption TBD
12 Panel Power consumption TBD
13 Weight TBD
广泛应用于智能仪器仪表、医疗产品、家用电器、数控
机床、电力自动化、税控
加油机、
安防监控、
考勤机、GPS、MID、移动电视、可视对讲、PMP、数码相框，电子书，便携式DVD、EPC等领域
